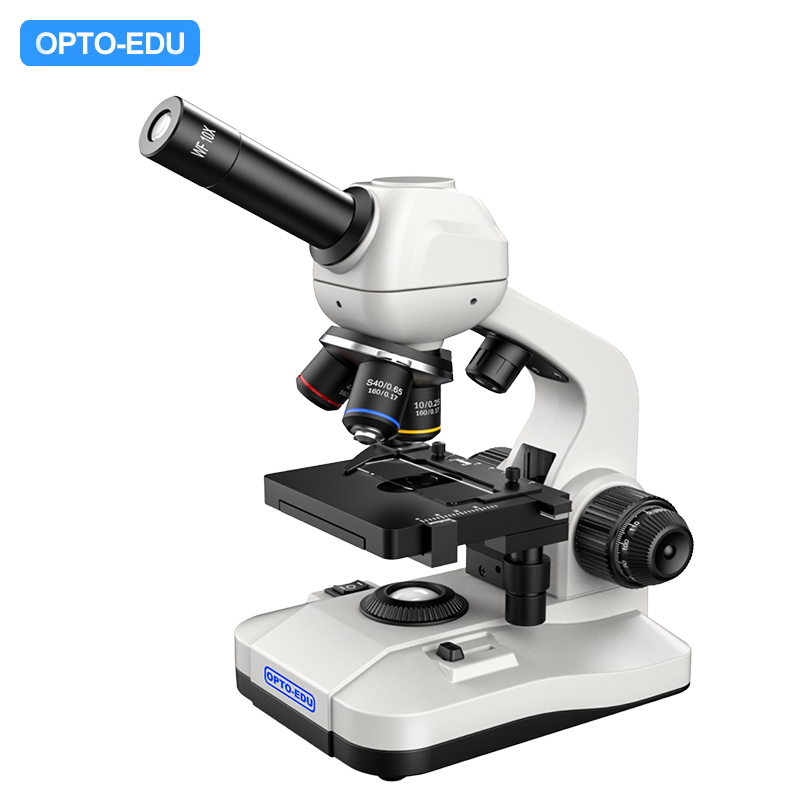

OPTO-EDU A11.5110 Student Microscope with Dual LED Light Source Digital Screen and Full Metal Body for Educational Use
-
برجسته کردن
Dual LED Light Source Student Microscope,Digital Screen Compound Optical Microscope,Full Metal Body Digital Microscope
,Digital Screen Compound Optical Microscope
,Full Metal Body Digital Microscope
-
ماده بدنبدن کامل فلزی قوی را حل کنید
-
مرحله کارمرحله مکانیکی دو لایه
-
متمرکزفوکوس کواکسیال درشت و ظریف
-
روشناییLED دوتایی ، LED 1W پایین ، LED 0.06W برتر
-
منبع تغذیهAC100-240V آداپتور منبع تغذیه DC 5V1A
-
باتری18650 باتری قابل شارژ 2000 میلی آمپر ساعت
-
محل منبعچین
-
نام تجاریCNOEC, OPTO-EDU
-
گواهیCE, Rohs
-
شماره مدلA11.3621
-
سند
-
مقدار حداقل تعداد سفارش1 کامپیوتر
-
قیمتFOB $1~1000, Depend on Order Quantity
-
جزئیات بسته بندیبسته بندی کارتن، برای حمل و نقل صادرات
-
زمان تحویل5 تا 20 روز
-
شرایط پرداختT/T ، West Union ، PayPal
-
قابلیت ارائه5000 عدد در ماه
OPTO-EDU A11.5110 Student Microscope with Dual LED Light Source Digital Screen and Full Metal Body for Educational Use
OPTO-EDU A11.5110 Dual LED Light Source Digital Screen Student Microscope
The 2025 Brand New Design Student Microscope features a super clear optical system with LCD screen on stand, offering exceptional clarity and ease of use for educational settings.
Key Features
- Built-in Digital Screen Display: Shows stage temperature, battery level, charging status, and top & bottom light indicators
- Double Layer Mechanical Stage: 95x105mm with X/Y movement (20x50mm)
- Coaxial Coarse & Fine Focusing for precise adjustments
- Dual LED Illumination: Upper 0.06W LED + Bottom 1W LED, both with adjustable brightness
- Power Options: DC 5V1A adapter and 18650 rechargeable battery (2000 mAh, not included for air shipment)
The A11.5110 Student Microscope includes wide-field eyepieces (WF10X/16mm & WF16X/13mm, Ø23.2mm) and four achromatic objectives: 4x, 10x, 40x(S), and 100X(Spring, Oil). The dual LED illumination (1W bottom, 0.06W top) ensures optimal contrast with low energy use. Designed for durability, the LED boasts a lifespan of up to 50,000 hours, making it a reliable, feature-rich tool for students and educators.
Model Specifications
| Model | A11.5110-M | A11.5110-V | A11.5110-B | A11.5110-T | A11.5110-CB | A11.5110-CT |
|---|---|---|---|---|---|---|
| Magnification | 640X | 1600X | ||||
| Body Material | Solid Strong Full Metal Body | |||||

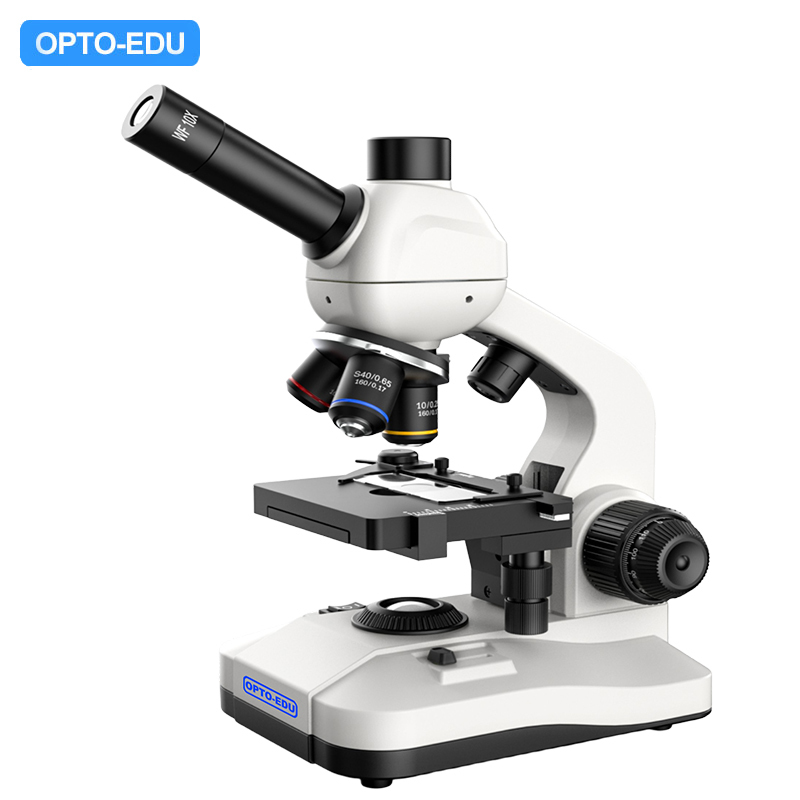

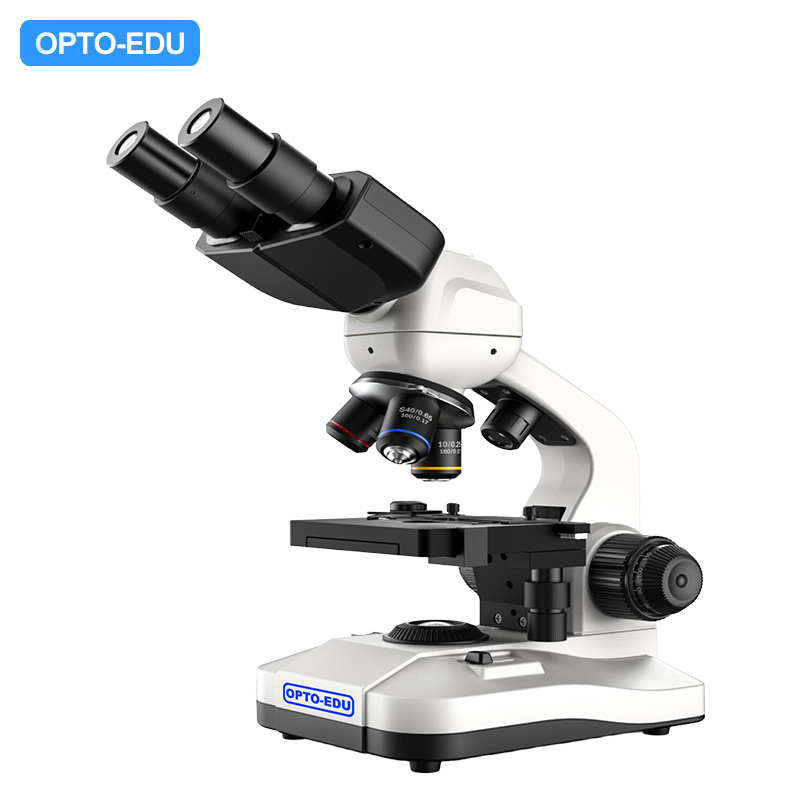

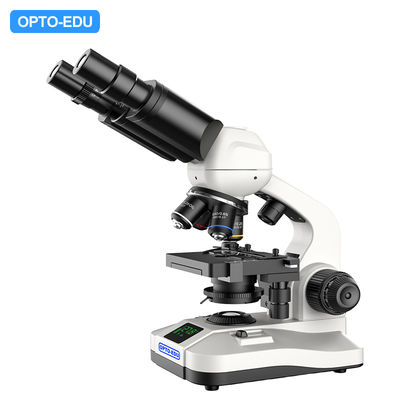

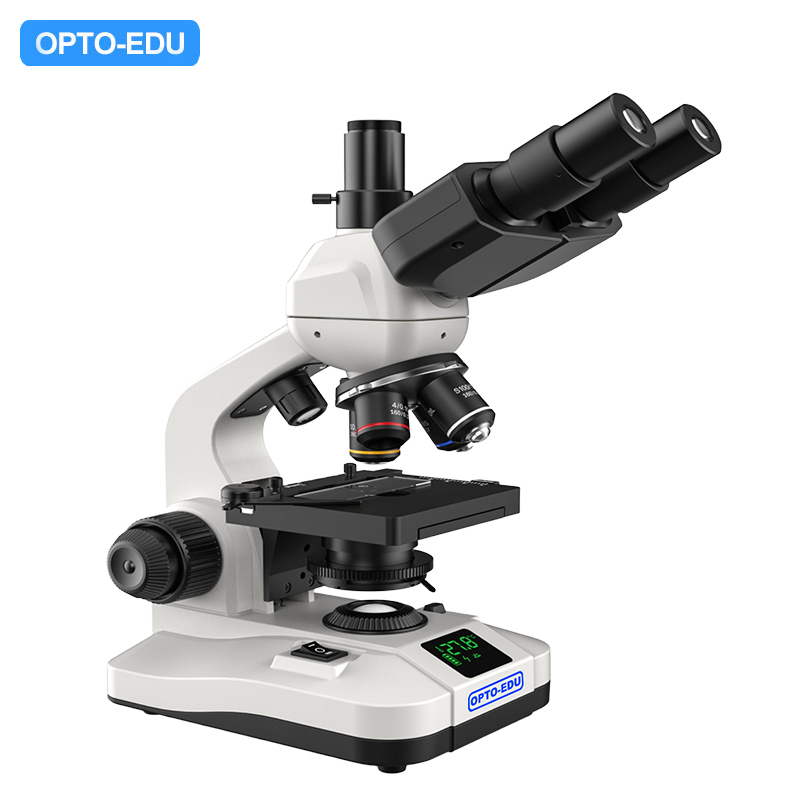

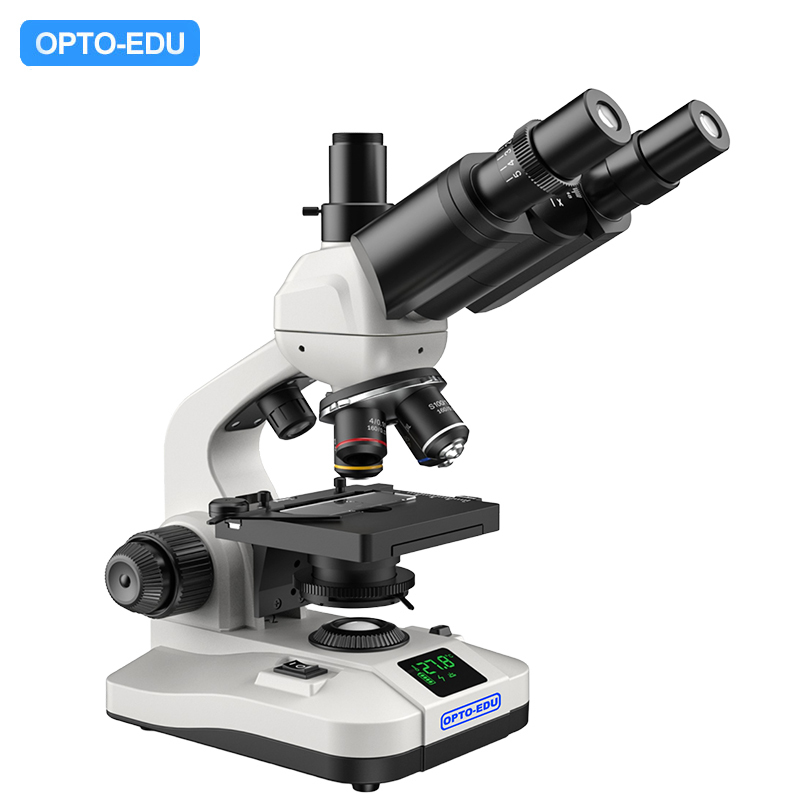

| Head | Monocular, 30° Incline, 360° Rotate | Dual Viewing, 30° Incline, 360° Rotate | Binocular, 30° Incline, 360° Rotate, Right Diopter Adjustable ±5°, Interpupillary Distance 48-75mm | Tinocular, 30° Incline, 360° Rotate, Right Diopter Adjustable ±5°, Interpupillary Distance 48-75mm | Seidentopf Binocular, 30° Incline, 360° Rotate, Right Diopter Adjustable ±5°, Interpupillary Distance 48-75mm | Seidentopf Tinocular, 30° Incline, 360° Rotate, Right Diopter Adjustable ±5°, Interpupillary Distance 48-75mm |
| Photo Adapter | - | Built-in 0.5x C-Mount | - | Built-in 0.5x C-Mount | - | Built-in 0.5x C-Mount |
Technical Specifications
Eyepiece: WF10x/16mm x1, WF16x/13mm x1 | WF10x/16mm x2, WF16x/13mm x2
Nosepiece: 3 Holes | 4 Holes
Objective: Achromatic 4x, 10x, 40x(S) | Achromatic 4x, 10x, 40x(S), 100x(O,S)
Working Stage: Double Layer Mechanical Stage, 95x105mm, Moving 20x50mm (Upgradeable to heating stage with temperature control function)
Focusing: Coaxial Coarse & Fine Focusing, Fine Division 0.008mm, Coarse Focusing Range 0-15mm
Condenser: - | Abbe Condenser N.A.1.25, With Iris Diaphragm
Illumination: Dual LED, Bottom 1W LED, Top 0.06W LED, Both Brightness Adjustable, Life Time 50000 Hours
Power Supply: AC100-240V Adapter Supply DC 5V1A Power
Battery: 18650 Rechargeable Battery 2000 MAH (NOT Include For Air Shipment)
LCD Panel: Digital LCD Screen On Stand, Display Working Stage Temperature, Battery Level, Charging Status, Top & Bottom LED Light Indicator
Packing Information
Packing List: Power Adapter, Power Cord, 18650 Battery, Instruction Manual, Dust Cover
Weight & Size: Microscope Body 19x14x34cm, Net Weight 2.8Kg
Package (1 Unit): 27x22x40cm, G.W. 3.5Kg
Package (4 Units): 90x29x41cm, G.W. 15Kg
